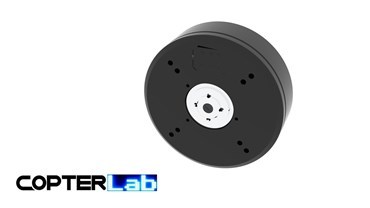

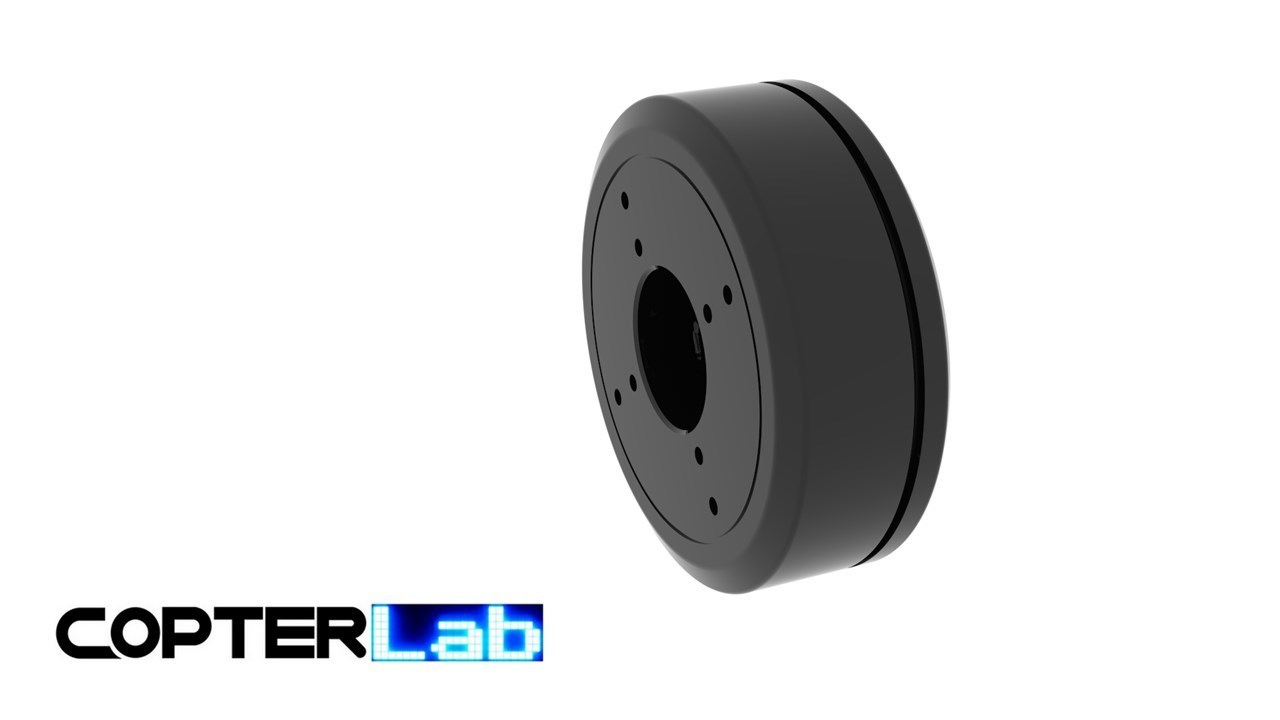

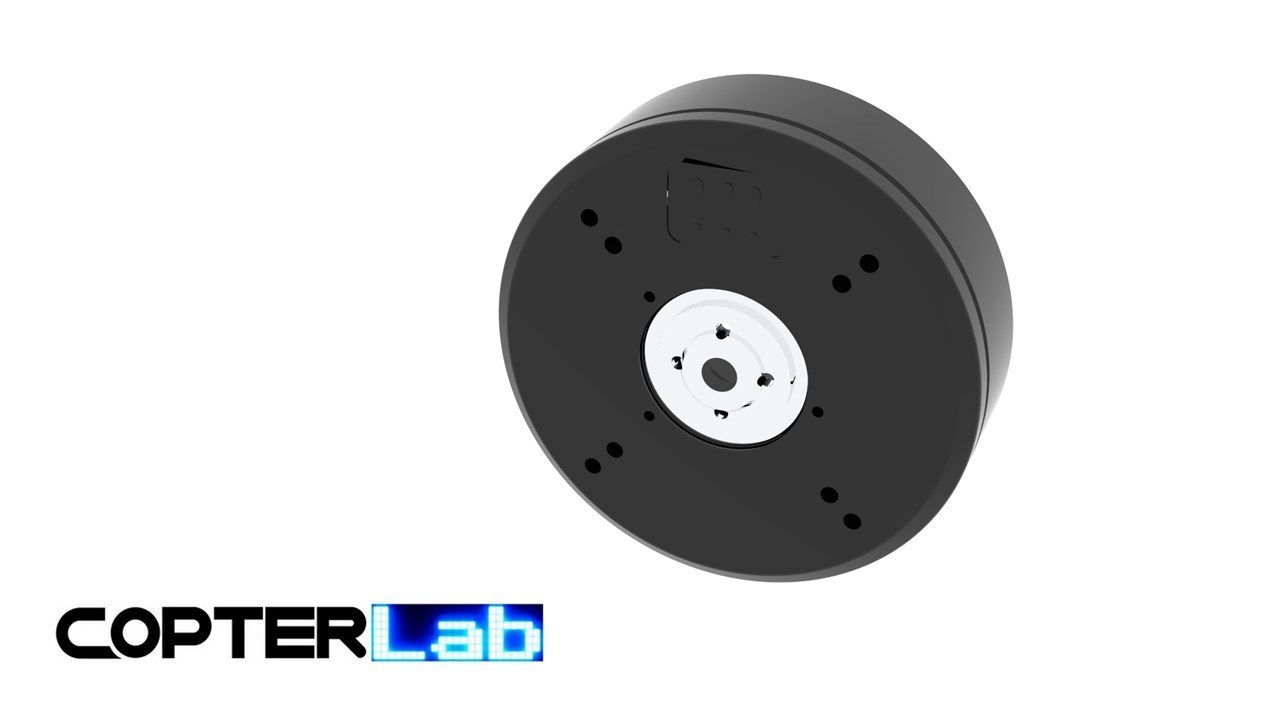

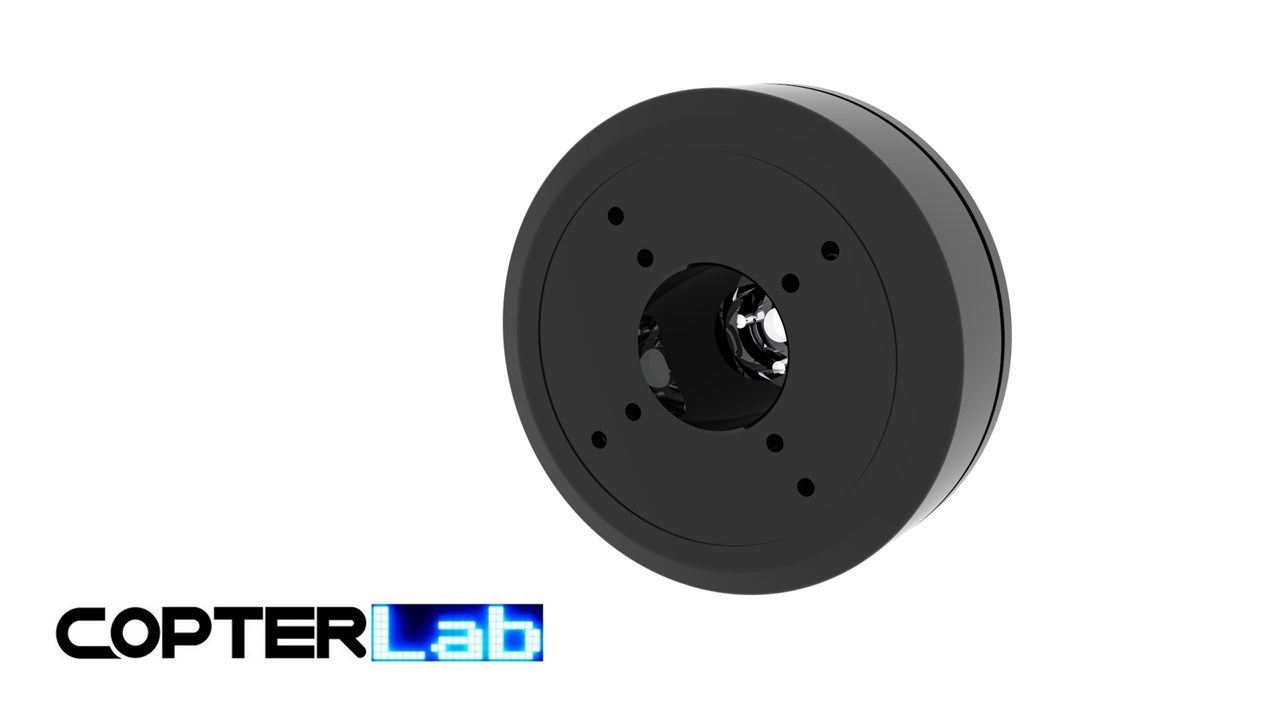

PM6010 Brushless Gimbal Motor 6.50kV

PM6010 Brushless Gimbal Motor

SKU:SL1936
Init A Live Chat Session For Any Question

*
$120.00
excluding shipping

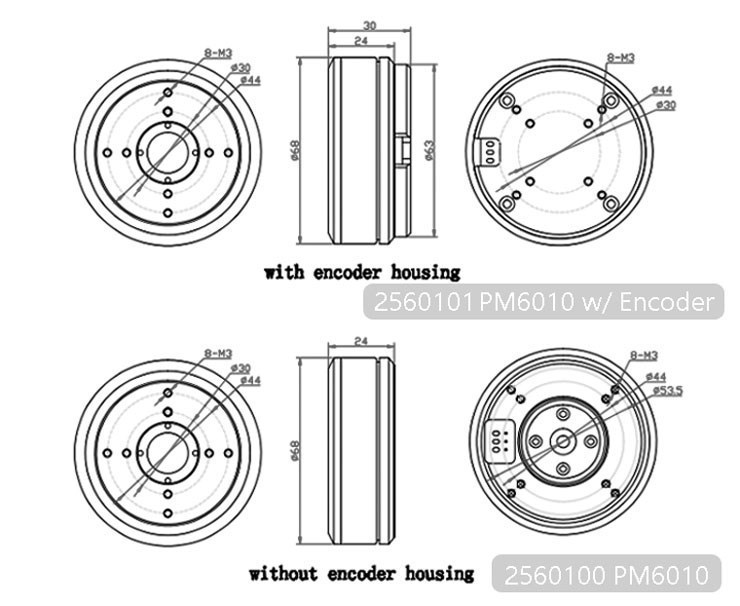

Diameter 24x68mm
Stator 6010
Torque 2.68N.m @12v
Magnet poles 28N 24P
Voltage 12v
Weight 247grams
Slipring hole diameter 8mm
Without Encoder board.

PM Series Gimbal Motor Specifications:

ItemPM2804Pm350 RTK5PM3510PM4108PM4310PM5208PM6010
Weight w/o encoder house g33427385120129247
Motor Dia x L mm33.2 x 1540 x 2140 x 2547 x 27.149 x 2459 x 2368 x 29
Stator mm28 x 435 x 535 x 1041 x 843 x 1052 x 860 x 10
Stator slot & Magnet Poles12N 14P24N 22P24N 22P24N 22P24N 28P24N 22P24N 28P
Input Voltage V8-128-1212-2412-2412-2412-2412-24
Torque30mN•m
@11.1V
60mN•m
@11.1V
100mN•m
@11.1V
150mN•m
@14.8V
190mN•m
@14.8V
210mN•m
@14.8V
800mN•m
@14.8V
Gimbal weight with Camera150-350g
5.3-12oz
300-800g
10.6-28oz
600-1500g
21.6-53oz
800-1800g
28.2-64oz
1200-2200g
42.3-78oz
1500-2500g
53-88oz
2500-4000g
88-141oz
Encoder~AS5600 PWM~AS5600 PWM~AS5600 PWM~AS5600 PWM~AS5600 PWM~AS5600 PWMAS5600 PWM
Encoder Connector Standard
Encoder Connector Optional
PWM
SPI
PWM
SPI
PWM
SPI
PWM
SPI
PWM
SPI
PWM
SPI
PWM
SPI
Slip ring Dia mm/8.512.58.512.512.512.5 or 22
