  3. MF12025 V2 Servo Motor & Open protocol RS485 Driver 8A 18bit 5.08Nm 1145g 10KV

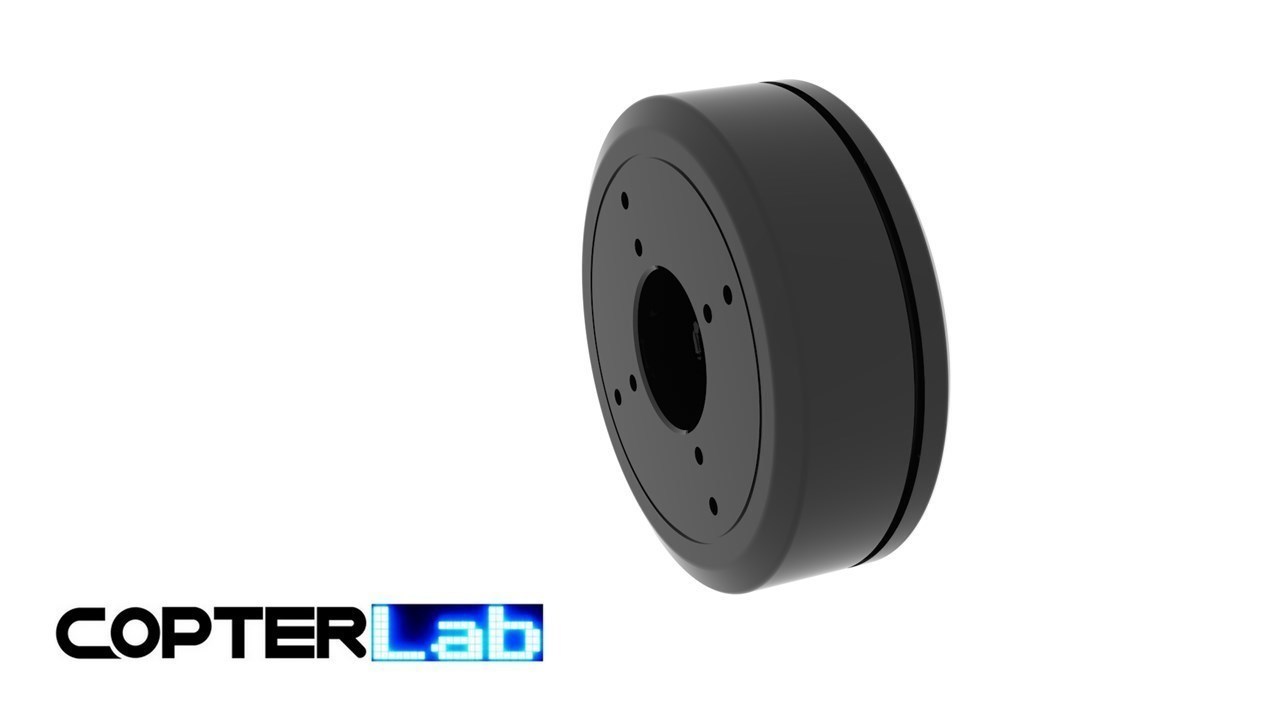

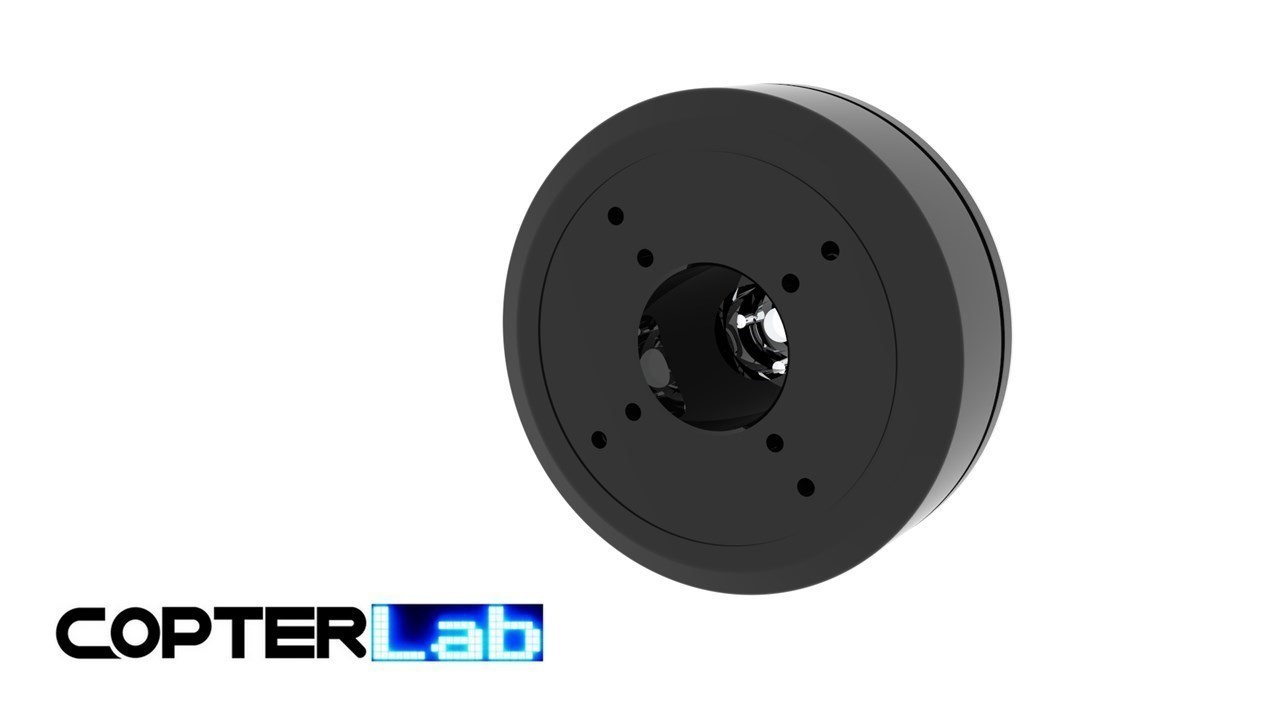

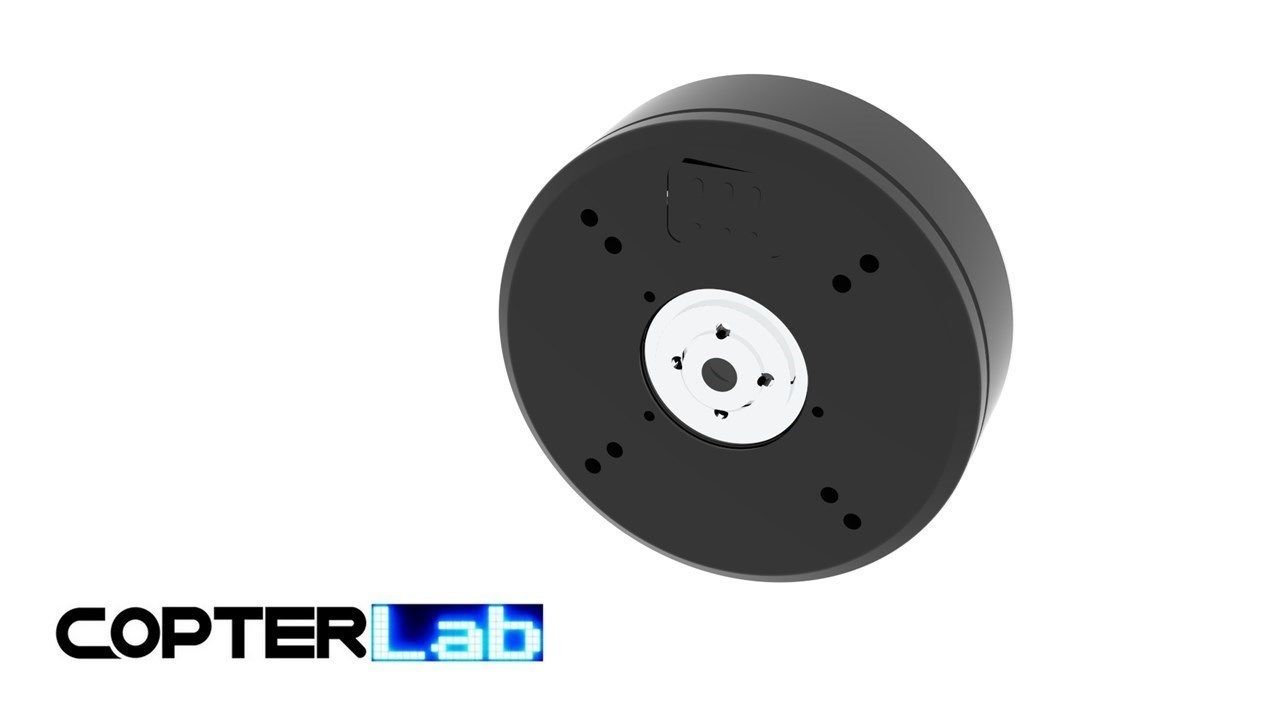

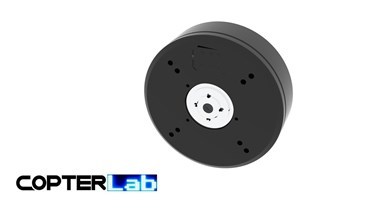

MF12025 V2 Servo Motor & Open protocol RS485 Driver 8A 18bit 5.08Nm 1145g 10KV

MF12025 V2 Servo Motor & Open protocol RS485 Driver 8A 18bit 5.08Nm 1145g 10KV
MF12025 V2 Servo Motor & Open protocol RS485 Driver 8A 18bit 5.08Nm 1145g 10KV MF12025 V2 Servo Motor & Open protocol RS485 Driver 8A 18bit 5.08Nm 1145g 10KV MF12025 V2 Servo Motor & Open protocol RS485 Driver 8A 18bit 5.08Nm 1145g 10KV MF12025 V2 Servo Motor & Open protocol RS485 Driver 8A 18bit 5.08Nm 1145g 10KV

PM6010 Brushless Gimbal Motor

SKU:2ORNL5RATMG1852
Init A Live Chat Session For Any Question

*
$400.00
excluding shipping

RMD-L motors driver 14 bit is upgraded to MF motor V2 driver 18 bit.
MF V2 improvements:

  • The encoder 14 bit is upgraded to 18bit encoder.
  • Improve the motor cog torque.
  • Support Torque loop control.
  • Support Speedloop control.
  • Support Positionloop control, Position loop + Speed loop control.
  • Will support PWM input to drive the motor. (it is not available now.)

RMD-L series Servo motor, which is the upgrade version of RMD-S  (Starter version). RMD-L encoder and driver is open RS485 protocol, the command to control the motor is open. The user can design his own controller to control the motor.

DM encoder and driver is compatible with Alexmos SimpleBGC, the user can use Alexmos SimpleBGC controller to control the motor.

MF V2 Series Servo Motor
501570107015702590109015902512025
Nominal voltageV1616242424242424242424242424242424
Nominal currentA1.574.903.331.758.303.621.938.903.362.06.63.277.033.347.453.465.35
Nominal torqueN.M0.360.380.610.631.01.00.991.61.61.51.091.071.641.672.422.795.08
Nominal Speedrpm250155094040015005802209702501001080450780290490130162
Max Speedrpm580204012306201890805410135046228514656901085500710280245
Stall torqueN.M0.822.384.12.19.44.82.429.44.13.278.04.110.05.011.65.87.7
Stall currentA3.6232.023.36.18318.14.8838.54.455.013.449.011.038.07.68.1
Phase to phase resistanceΩ3.50.480.712.730.280.933.90.282.25.50.291.150.351.50.51.92.8
Phase to phase inductancemH1.760.190.863.30.241.254.830.242.957.60.53.00.651.050.964.715.0
Speed constantrpm/v1697391763249401044519331220510
Torque constantN.M/A0.230.080.180.360.120.280.510.180.480.750.150.310.200.450.320.810.95
Rotor inertiagc㎡2682687487489339339331040104010402860286032713271465646565500
Pole pairs1414141414141414141414141414141421
Motor weightg1741742552553603603605405405405105106506508808801145

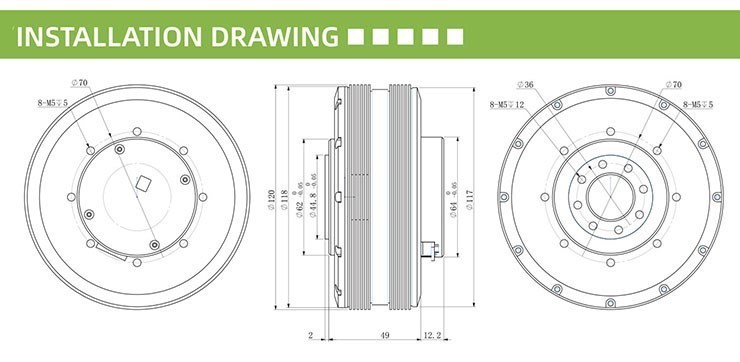

Size Dimensionmm49496969696969696969898989898989120
Size Lengthmm33.933.928.928.933.933.933.946464637374242535346
ConnectorZH1.5/8PinZH1.5/8Pin
Driver Input VoltageV7.4-327.4-32
Driver Current NorminateA88
Driver Current BurstA1313
