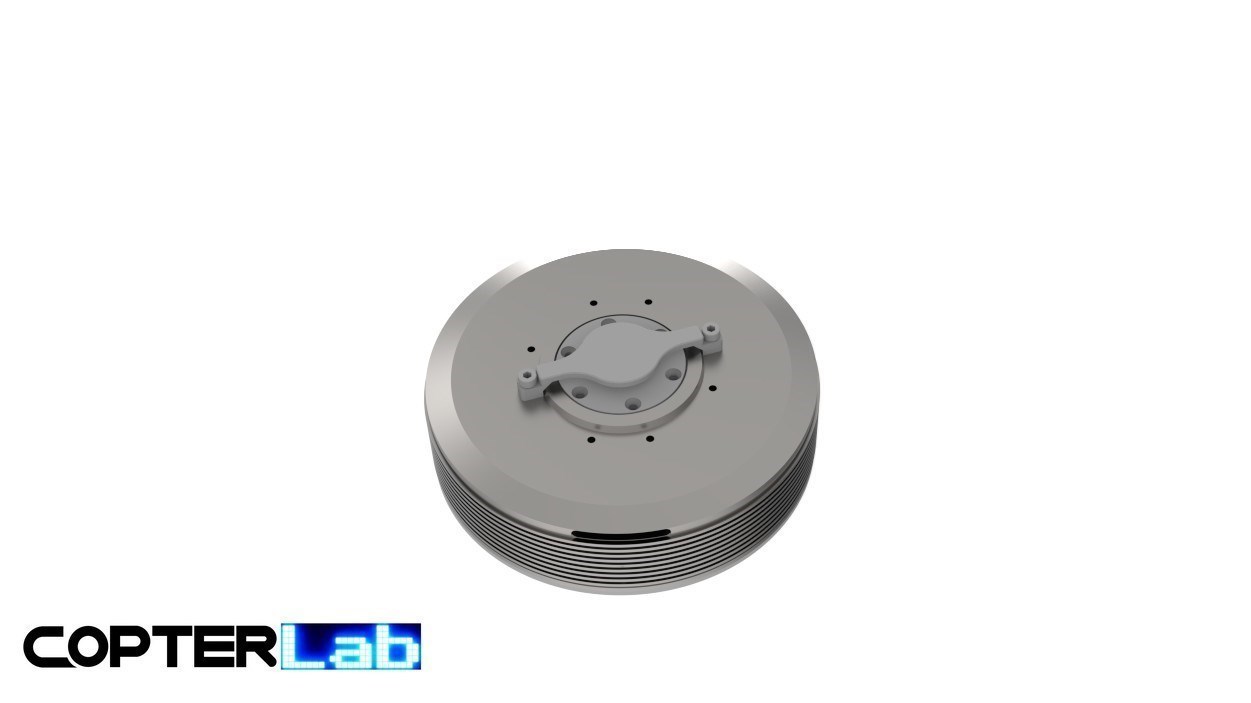

PM100 Brushless Gimbal Motor without encoder 7.29kV

PM100 Brushless Gimbal Motor without encoder 7.29kV
PM100 Brushless Gimbal Motor without encoder 7.29kV PM100 Brushless Gimbal Motor without encoder 7.29kV

PM100 Brushless Gimbal Motor

SKU:SLRTR0916
Init A Live Chat Session For Any Question

*
$120.00
excluding shipping
ItemPM100PM120PM12060
Weight w/o encoder house g52013003100

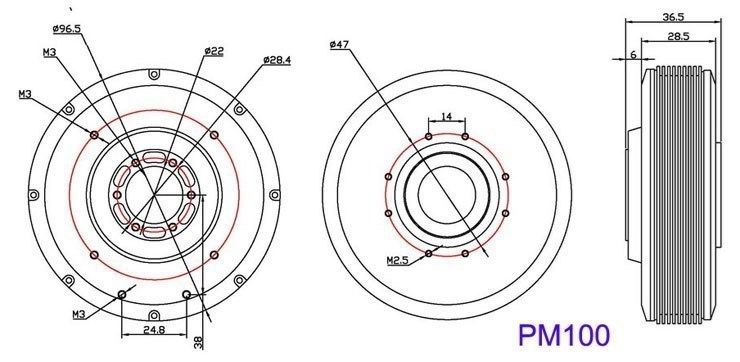

Motor Dia x L mm96.5 x 36.5120 x 55117 x 85
Stator slots & Magnet Poles36N 42P36N 42P36N 42P
Input Voltage V12-2412-2412-24
Gimbal weight with Camera10kg25kg50kg
EncoderAS5600/AS5048A PWMAS5600/AS5048A PWMAS5600/AS5048A PWM
Encoder Connector Standard
Encoder Connector Optional		PWM
SPI		PWM
SPI		PWM
SPI
Slip ring Dia mm222225.5

PM Series Gimbal Motor Specifications:

PM Series Motors
Unit1105220528053505351043104315521552256010602510012025
Nom. VoltageV12121212121616242424362424
Nom. CurrentA0.590.660.810.790.530.790.591.121.281.191.091.754.00
Nom. TorqueN.m0.010.040.060.070.110.210.280.761.260.731.771.606.00
Nom. Speedrpm850792950587336343238221221182166130140
Max Speedrpm200012001452890550520360336336275252290300
Stall TorqueN.m0.0130.060.090.110.160.320.421.151.901.102.682.006.90
Stall CurrentA0.921.001.221.200.801.200.901.691.941.801.653.0011.2
ResistanceΩ12.57.105.005.307.8010.915.211.811.811.920.53.002.50
InductanceMh1.151.451.512.353.954.746.567.8011.3113.0325.8031.5066.0
Speed const.rpm/v1081001217445332314141171112
Torque const.N.m/A0.010.060.070.090.200.270.470.680.980.611.621.130.76
Rotor inertiagcm^21542515681202268667933748164528604656
Pole pairs67711111414111114142121
Motor weightg7204542731131582463302475115201300
Working temp℃-20/80-20/80-20/80-20/80-20/80-20/80-20/80-20/80-20/80-20/80-20/80-20/80-20/80
Demagnet℃120120120120120120120120120120120120120
Encoder typeAS5048A/AS5600
