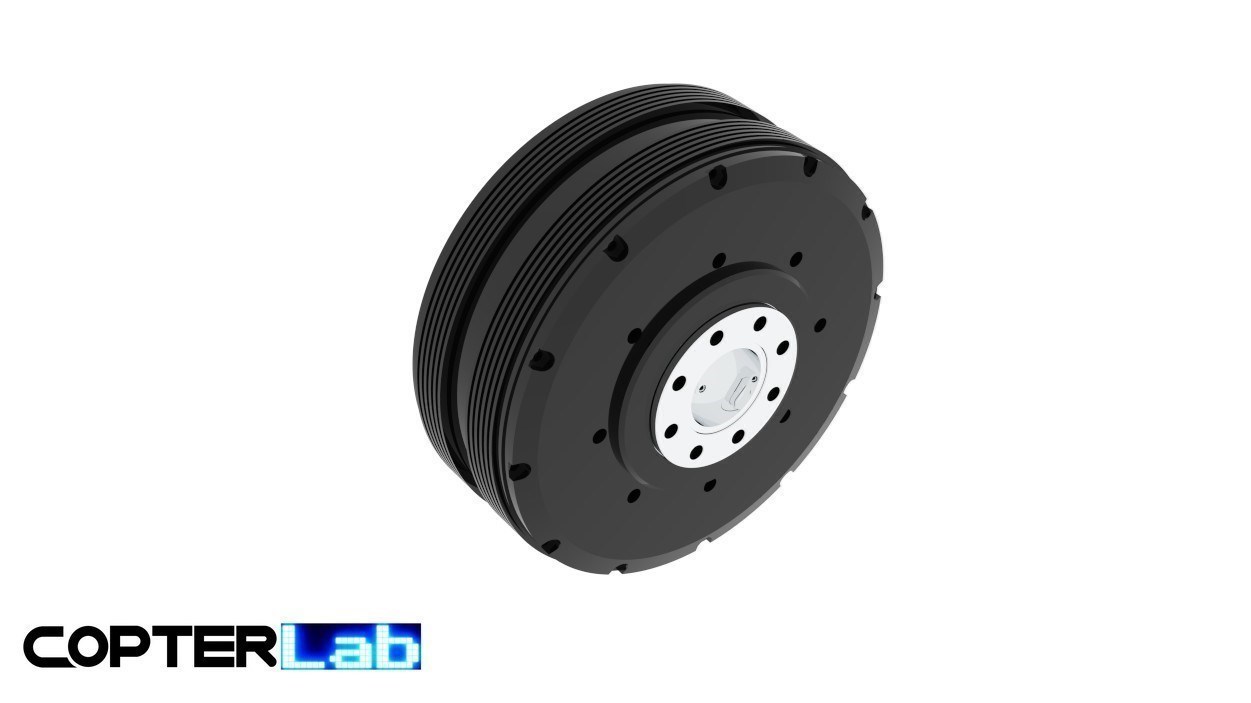

PM120 Brushless Gimbal Motor with encoder AS5048A (PM12025)

PM120 Brushless Gimbal Motor with encoder AS5048A (PM12025)
PM120 Brushless Gimbal Motor with encoder AS5048A (PM12025) PM120 Brushless Gimbal Motor with encoder AS5048A (PM12025)

PM120 Brushless Gimbal Motor

SKU:SLRHRA1028
Init A Live Chat Session For Any Question

*
$275.00
excluding shipping
ItemPM100PM120 (PM12025)PM12060PM20040
Weight w/o encoder house g520130031007000

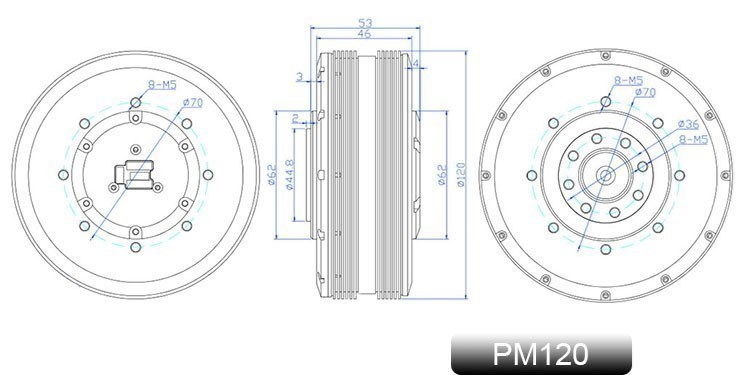

Motor Dia x L mm96.5 x 36.5120 x 55117 x 85211 x 91.8
Stator slots & Magnet Poles36N 42P36N 42P36N 42P54N 60P
Input Voltage V12-2412-2412-2412-24
Gimbal weight with Camera10kg25kg50kg   12Nm41.6Nm
EncoderAS5600/AS5048AAS5600/AS5048AAS5600/AS5048AAS5600/AS5048A
Encoder Connector Standard
Encoder Connector Optional		PWM
SPI		PWM
SPI		PWM
SPI		PWM
SPI
Slip ring Dia mm222225.574

UnitPM2205PM2805Pm350 RTK5PM3510PM4310PM4315PM5215PM5225PM6010PM6025PM100PM120
Nom. VoltageV121212121616242424362424
Nom. CurrentA0.660.810.790.530.790.591.121.281.191.091.754.00
Nom. TorqueN.m0.040.060.070.110.210.280.761.260.731.771.606.00
Nom. Speedrpm792950587336343238221221182166130140
Max Speedrpm12001452890550520360336336275252290300
Stall TorqueN.m0.060.090.110.160.320.421.151.901.102.682.006.90
Stall CurrentA1.001.221.200.801.200.901.691.941.801.653.0011.2
ResistanceΩ7.105.005.307.8010.915.211.811.811.920.53.002.50
InductanceMh1.451.512.353.954.746.567.8011.3113.0325.8031.5066.00
Speed const.rpm/v1001217445332314141171112
Torque const.N.m/A0.060.070.090.200.270.470.680.980.611.621.130.76
Rotor inertiagcm^242515681202268667933748164528604656
Pole pairs7711111414111114142121
Motor weightg204542731131582463302475115201300
Working temp℃-20/80-20/80-20/80-20/80-20/80-20/80-20/80-20/80-20/80-20/80-20/80-20/80
Max demagnet℃120120120120120120120120120120120120
Encoder typeAS5048A/AS5600
