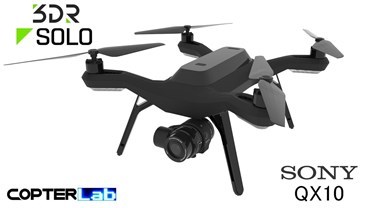

2 Axis Sony QX10 Gimbal for 3DR Solo
Material: Carbon ABS gimbal fits perfectly with Sony QX10 camera for agriculture imaging like inspection of landfills.
The multispectral sensor allows you to calculate the NDVI index with GIS software such as ArcGIS, Pix4DAG, gvSIG, QGIS, LEOWorks, ERDAS, IDRISI, SOPI or BEAM
This gimbal avoid motor vibrations coming from the frame and secure camera to point to straight foward with lightest Sony QX10 lens in order to make agricultural remote sensing correctly.
Screws, 4 damper balls and Solo's Beauty plate mount included.
Controller card used: SimpleBGC or Storm32 (by customer choice)
You can control Roll/Pitch from your additional PWM remote controller from PWM protocol.
Balmaceda Rio NDVI, Chile
This georeferenced, colorized relative elevation and NDVI job was automatically created from 124 geo-tagged 4000 × 3000 images. They were taken with a Canon PowerShot S100 modified with a notch filter for near IR acceptance. An area of 50 acres was covered with 1.4 inch/pixel ground resolution from an altitude of 330 feet above ground level. The presence of a NIR channel instead of one of the standard RGB channels allows the (NIR-Vis)/(NIR+Vis) normalization equation to highlight areas of crop stress.
How to trigger camera?
You need to buy Seagull #MAP2 for shooting or Seagull #REC for movie
Weight: 290g (gimbal + motors + vibration isolation dampers)
Dimensions:3.3"(W) x 4.3"(D) x 4.3"(H)
8.5cm (W) x 11cm (D) x 11cm (H)
Power is directly taken from the stock 3DR Solo Gimbal power bus cable.
With this imaging gimbal, Copterlab is breaking multi-spectral imaging to low price gimbal, making it perfect for applications like:
– Search and rescue
– Precision agriculture
– Roof inspections
– Power line inspections
– Substation inspections
– Cell tower inspections
– And anything else you can dream up
- second remote controller
- video transmitter integrated in the gimbal
- video monitor with screen holder and DVR
Why choose Copterlab gimbal?
|Live support (website - Skype - email)
|No any support at all
|Ready to use
|Need to mount and setup it
|Poor 3d printed parts or aluminum parts
|Lot of and we can create yours for free
|No jello garanteed
|You need to spend lot of time to avoid it
|Gold, Silver, White Gloss, Black Gloss
|China for sure
|Not cheap, lot of time to create it
|You get that you paid
|Lifetime: all 3D parts can be replaced freely, only shipping costs are paid by customer
