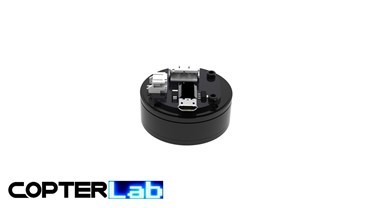

Pm350 RTK5 Brushless Gimbal Motor 48kV

Pm350 RTK5 Brushless Gimbal Motor

SKU: S1647
Init A Live Chat Session For Any Question

*
$34.55
excluding shipping

Diameter 15x40mm
Stator 3505
Torque 67mM @12v
Magnet poles 24N 22P
Voltage 12v
Weight 56grams
Slipring hole diameter 8mm
Without Encoder board.

Item PM2804 Pm350 RTK5 PM3510 PM4108 PM4310 PM5208 PM6010
Weight w/o encoder house g 33 42 73 85 120 129 247
Motor Dia x L mm 33.2 x 15 40 x 21 40 x 25  47 x 27.1 49 x 24 59 x 23 68 x 29
Stator mm 28 x 4 35 x 5 35 x 10  41 x 8 43 x 10 52 x 8 60 x 10
Input Voltage V 8-12 8-12 12-24 12-24 12-24 12-24 12-24
Torque 30mN•m
@11.1V
60mN•m
@11.1V
100mN•m
@11.1V
150mN•m
@14.8V
190mN•m
@14.8V
210mN•m
@14.8V
800mN•m
@14.8V
Gimbal weight with Camera 150-350g
5.3-12oz
300-800g
10.6-28oz
600-1500g
21.6-53oz
800-1800g
28.2-64oz
1200-2200g
42.3-78oz
1500-2500g
53-88oz
2500-4000g
88-141oz
Encoder ~AS5048A PWM ~AS5048A PWM ~AS5048A PWM ~AS5048A PWM ~AS5048A PWM ~AS5048A PWM AS5048A PWM
Encoder Connector Standard
Encoder Connector Optional
PWM
SPI
PWM
SPI
PWM
SPI
PWM
SPI
PWM
SPI
PWM
SPI
PWM
SPI
Slip ring Dia mm / 8.5  12.5 8.5 12.5 12.5 12.5 or 22
