PM3515 Brushless Gimbal Motor

PM3515 Brushless Gimbal Motor

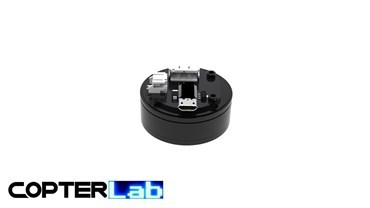

3515 Brushless Gimbal Motor

SKU: SL20252
Init A Live Chat Session For Any Question

*
$38.00
excluding shipping

Diameter 15x40mm
Stator 3515
Torque 67mM @12v
Magnet poles 24N 22P
Voltage 12v
Weight 56grams
Slipring hole diameter 8mm
Without Encoder board.

tem PM2804 Pm350 RTK5 PM3510 PM4108 PM4310 PM5208 PM6010
Weight w/o encoder house g 33 42 73 85 120 129 247
Motor Dia x L mm 33.2 x 15 40 x 21 40 x 25  47 x 27.1 49 x 24 59 x 23 68 x 29
Stator mm 28 x 4 35 x 5 35 x 10  41 x 8 43 x 10 52 x 8 60 x 10
Stator slot & Magnet Poles 12N 14P 24N 22P 24N 22P 24N 22P 24N 28P 24N 22P 24N 28P
Input Voltage V 8-12 8-12 12-24 12-24 12-24 12-24 12-24
Torque 30mN•m
@11.1V		 60mN•m
@11.1V		 100mN•m
@11.1V		 150mN•m
@14.8V		 190mN•m
@14.8V		 210mN•m
@14.8V		 800mN•m
@14.8V
Gimbal weight with Camera 150-350g
5.3-12oz		 300-800g
10.6-28oz		 600-1500g
21.6-53oz		 800-1800g
28.2-64oz		 1200-2200g
42.3-78oz		 1500-2500g
53-88oz		 2500-4000g
88-141oz
Encoder ~AS5600 PWM ~AS5600 PWM ~AS5600 PWM ~AS5600 PWM ~AS5600 PWM ~AS5600 PWM AS5600 PWM
Encoder Connector Standard
Encoder Connector Optional		 PWM
SPI		 PWM
SPI		 PWM
SPI		 PWM
SPI		 PWM
SPI		 PWM
SPI		 PWM
SPI
Slip ring Dia mm / 8.5  12.5 8.5 12.5 12.5 12.5 or 22



  PM Series Motors
  Unit 1105 2205 2805 3505 3510 4310 4315 5215 5225 6010 6025 100 120
Nom. Voltage V 12 12 12 12 12 16 16 24 24 24 36 24 24
Nom. Current A 0.59 0.66 0.81 0.79 0.53 0.79 0.59 1.12 1.28 1.19 1.09 1.75 4.00
Nom. Torque N.m 0.01 0.04 0.06 0.07 0.11 0.21 0.28 0.76 1.26 0.73 1.77 1.60 6.00
Nom. Speed rpm 850 792 950 587 336 343 238 221 221 182 166 130 140
Max Speed rpm 2000 1200 1452 890 550 520 360 336 336 275 252 290 300
Stall Torque N.m 0.013 0.06 0.09 0.11 0.16 0.32 0.42 1.15 1.90 1.10 2.68 2.00 6.90
Stall Current A 0.92 1.00 1.22 1.20 0.80 1.20 0.90 1.69 1.94 1.80 1.65 3.00 11.2
Resistance Ω 12.5 7.10 5.00 5.30 7.80 10.9 15.2 11.8 11.8 11.9 20.5 3.00 2.50
Inductance Mh 1.15 1.45 1.51 2.35 3.95 4.74 6.56 7.80 11.31 13.03 25.80 31.50 66.0
Speed const. rpm/v 108 100 121 74 45 33 23 14 14 11 7 11 12
Torque const. N.m/A 0.01 0.06 0.07 0.09 0.20 0.27 0.47 0.68 0.98 0.61 1.62 1.13 0.76
Rotor inertia gcm^2 15 42 51 56 81 202 268 667 933 748 1645 2860 4656
Pole pairs   6 7 7 11 11 14 14 11 11 14 14 21 21
Motor weight g 7 20 45 42 73 113 158 246 330 247 511 520 1300
Working temp ℃ -20/80 -20/80 -20/80 -20/80 -20/80 -20/80 -20/80 -20/80 -20/80 -20/80 -20/80 -20/80 -20/80
Demagnet ℃ 120 120 120 120 120 120 120 120 120 120 120 120 120
Encoder type   AS5048A/AS5600
